BD Cuff implants
Simplified molar solution

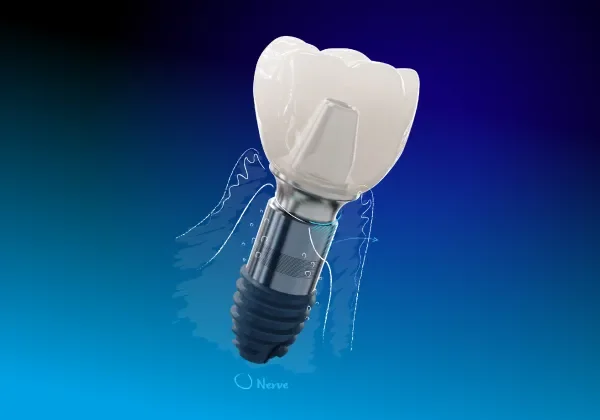

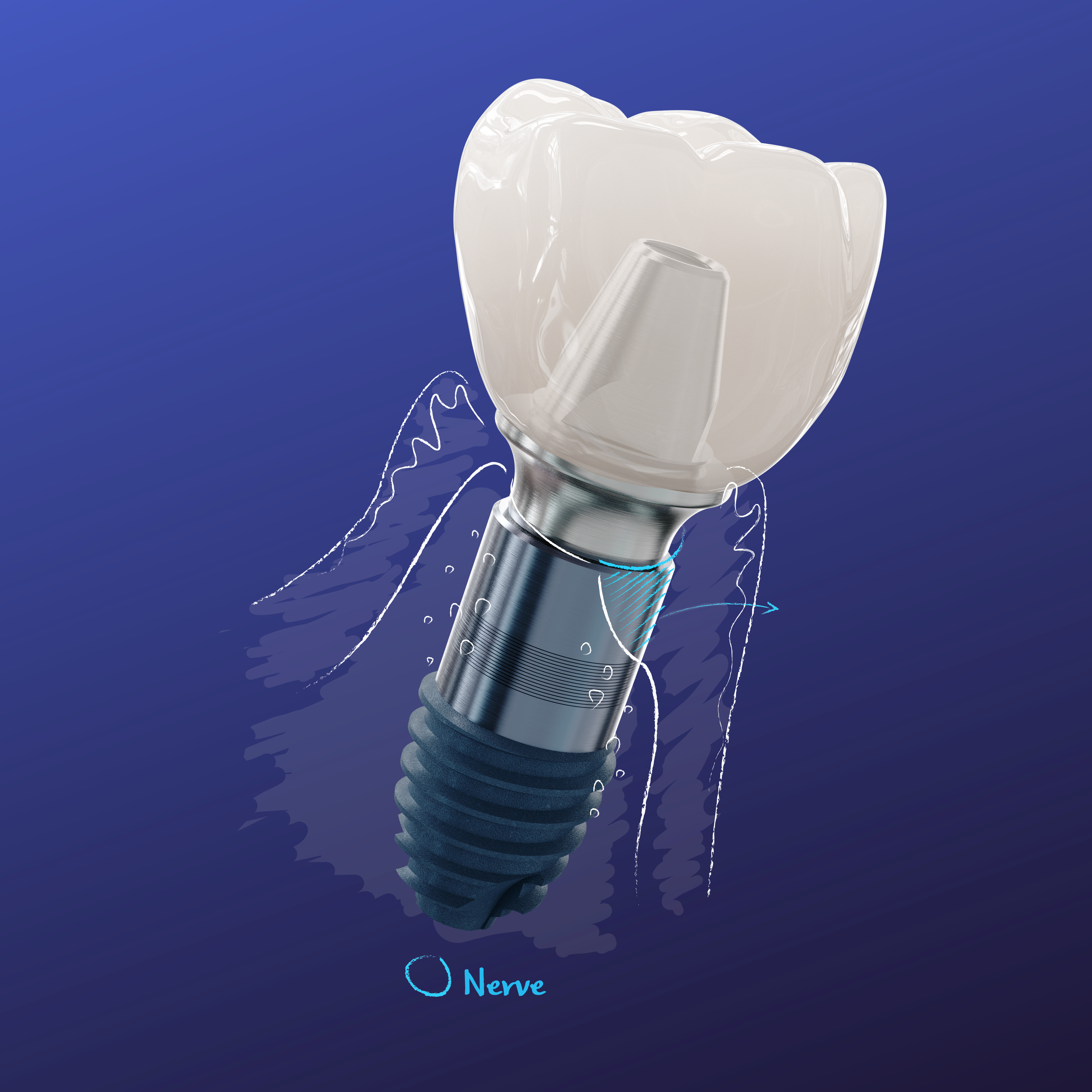

BD Cuff® is designed to protect the implant–tissue interface, minimizing crestal bone loss while supporting healthy soft tissue integration.
The result is greater implant stability, long-term aesthetics, and confidence for both clinician and patient.
Easier, faster and more comfortable

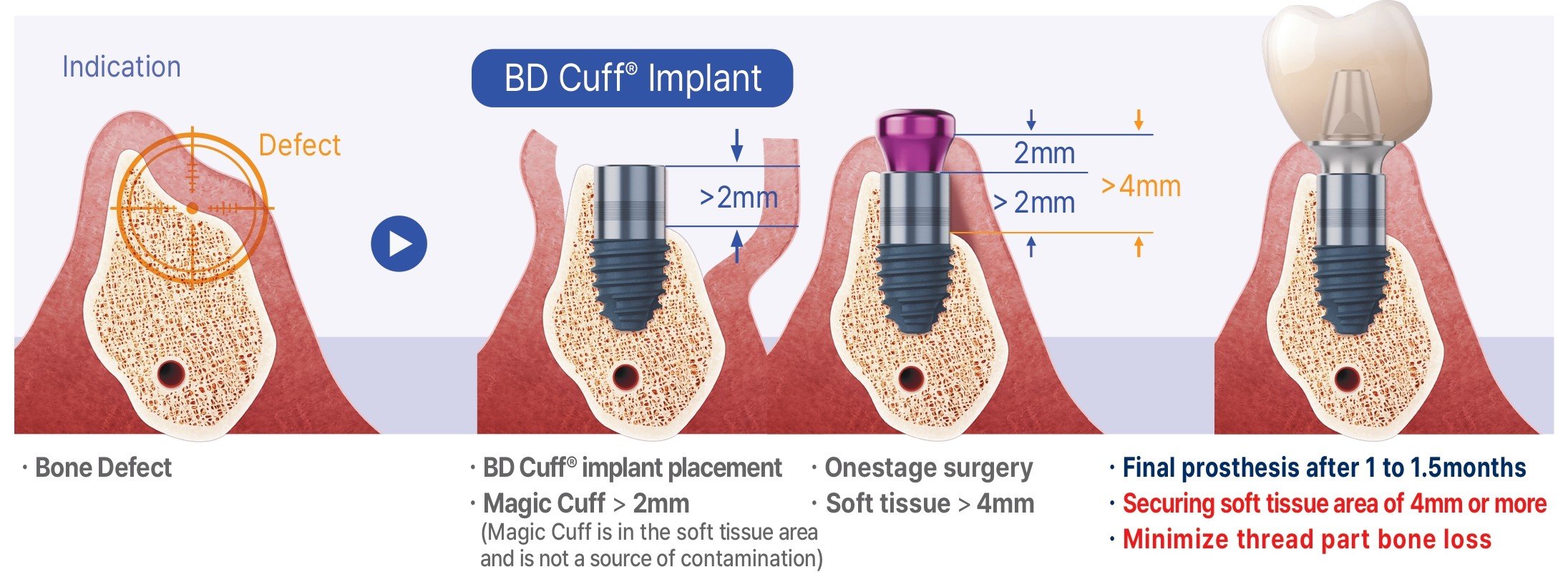

BD Cuff enables implant placement in thin alveolar bone, low bone height, or defective alveolar bone using a simple epicrestal placement technique

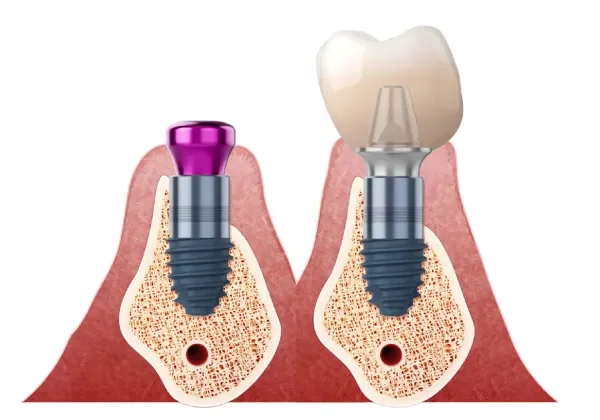

Streamlined one-stage surgery – final prosthesis placement possible within 1-1.5 months.
BDCuff is designed to protect implants from complications – with adequate soft tissue height (>4mm), BD Cuff® implants prevent crestal bone loss and contamination, especially in areas with thin gingiva (<2mm).

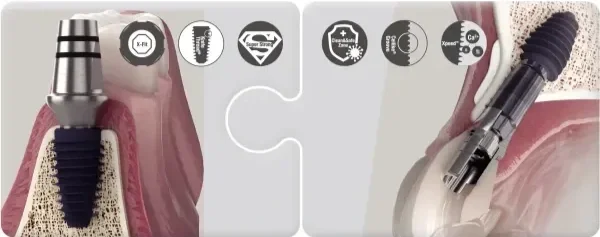

Blue Diamond implant strength + ARi design concept
Features proven BD X-FIT® connection, compatible with existing BD components, and innovative ARi design.
The Magic Cuff design prevents complications such as peri-implantitis due to bone loss and is easy to remove even when it occurs.

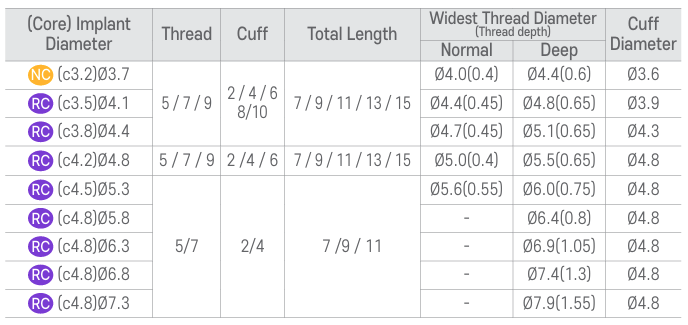

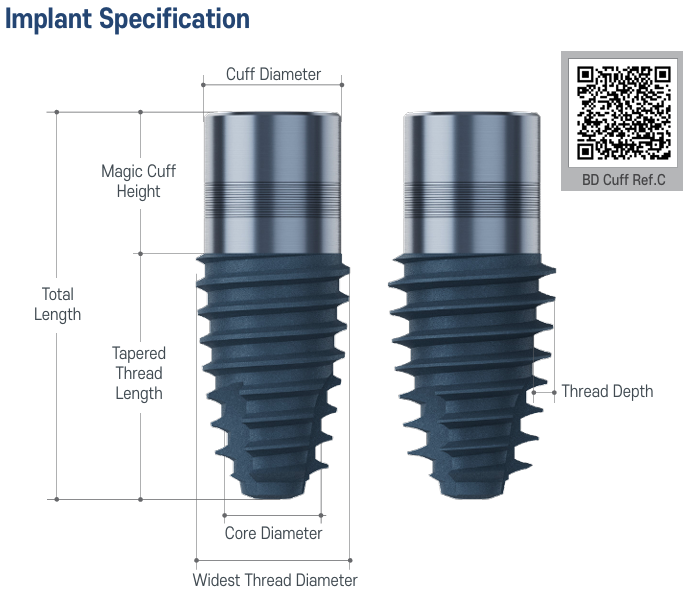

Selecting BD Cuff Implants

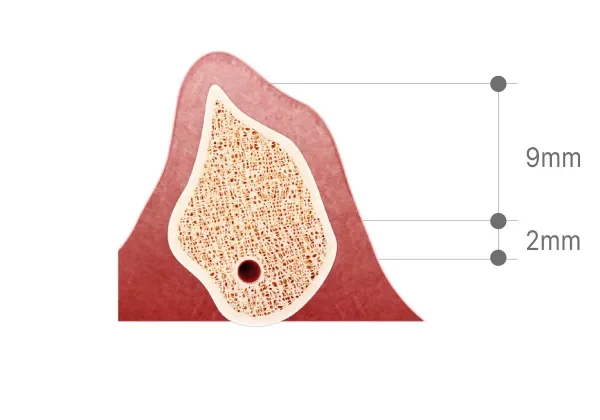

1. Access the available bone height
Measure the distance from the crestal bone to the inferior alveolar nerve to determine the total implant length that can be placed.
Example: 9mm

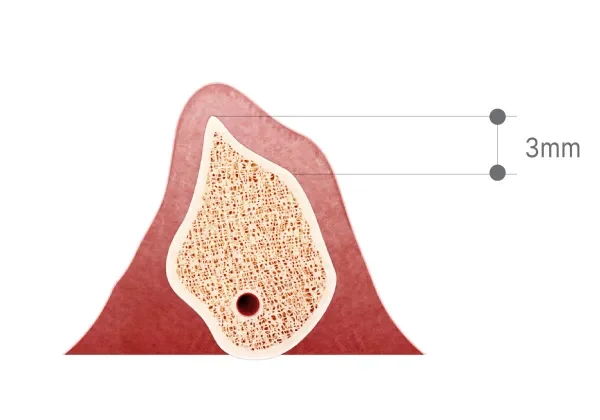

2. Determine the cuff height
Check the height of the defective bone. Measured height will be the cuff height of the implant.
Example: 3mm -> select 4 mm cuff height
Total 9mm (5 mm thread length + 4 mm cuff height)

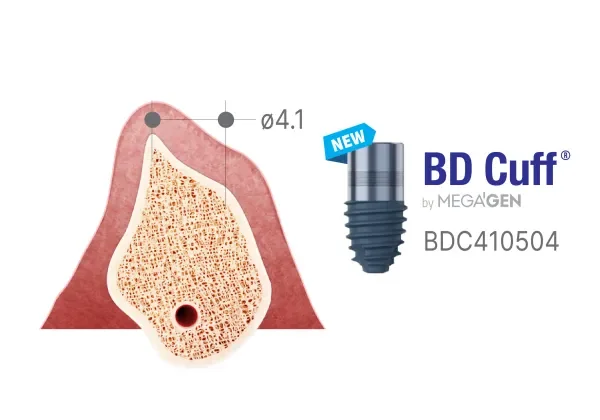

3. Determine implant diameter
The diameter should match the site-specific bone and gingival conditions for optimal stability.
Example: Ø 4.1 -> BDC410504
Drilling & placement

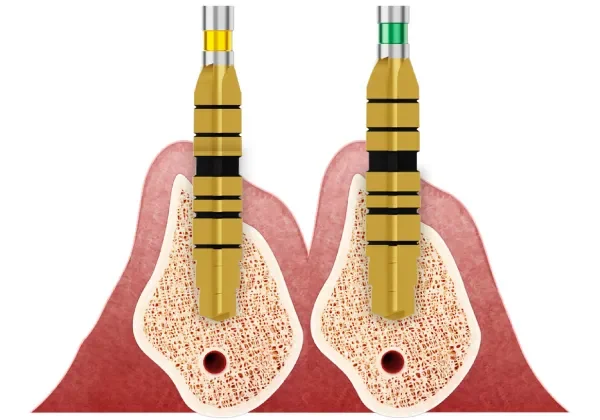

4. Follow the drilling process
Perform the drilling sequentially based on the total length of the final selected implant. Adjust drilling based on bone density (D1 / D2) and implant diameter.
Example: Ø 4.1 Lance drill -> Ø 2.5 drill -> Ø 2.9 drill -> Ø 3.3 drill -> Ø 3.6 drill -> Ø3.9 drill
5. Ensure proper insertation torque
Maintain an insertion torque of 80Ncm or less when using the 45Ncm ratchet connector for safe and effective implant placement.
* If gingiva volume reinforcement is required, add bone grafting material
BD Cuff implants – feedback
Gita Zommerfelde-Antipina
Protēziste, implantoloģe (A WHITE Clinic)
“The BlueDiamond Cuff stood out with its very well thought out design, especially in terms of soft tissue management and crestal bone protection. The machined collar concept makes clinical sense in narrow ridges and posterior areas where thread exposure is a risk. I see it as a practical implant that can reduce the need for GBR and improve long-term tissue stability.”
Tauri Narits
Mutes, sejas un žokļu ķirurgs (TÜK Stomatoloģijas klīnika, Igaunija )
“In my opinion, this represents a very interesting and, in certain cases, clearly justified alternative. Particularly in elderly patients and in All-on-X treatments, where bone regeneration has a poor prognosis, it may offer a practical and clinically sound solution.”
Kaspars Stāmers
Mutes, sejas un žokļu ķirurgs (RSU Implantoloģijas klīnika)
“In my opinion, BlueDiamond Cuff is a very positive innovation – it is a valuable option in difficult clinical situations when the patient's bone volume is limited.”
Regina Kuningas-Ott
Ķirurģe, implantoloģe (Hanzadent, Igaunija)
“I like how it opens up a variety of new implant options without augmentation.”
