BLUEDIAMOND IMPLANT®
A step ahead: A masterpiece of implant technology
Why choose MegaGen Blue Diamond?
Contains the core features of the AnyRidge® implant (good primary stability)
Higher compressive and fatigue strength with long-term biological stability
Shorter treatment period: Thanks to high-quality and updated surface technology
Precise positioning and excellent prosthetic connection (X-Fit™)
Many sizes: Suitable for elderly patients and ideal for use with limited alveolar bone width
BLUEDIAMOND IMPLANT® combines cutting-edge technology and innovation, offering exceptional strength and biological stability. Its unique XPEED® surface coating accelerates osseointegration, while the KnifeThread® design ensures excellent initial stability. The implant is designed to provide the ideal balance of aesthetics and functionality, being compatible with both traditional and digital restoration options.

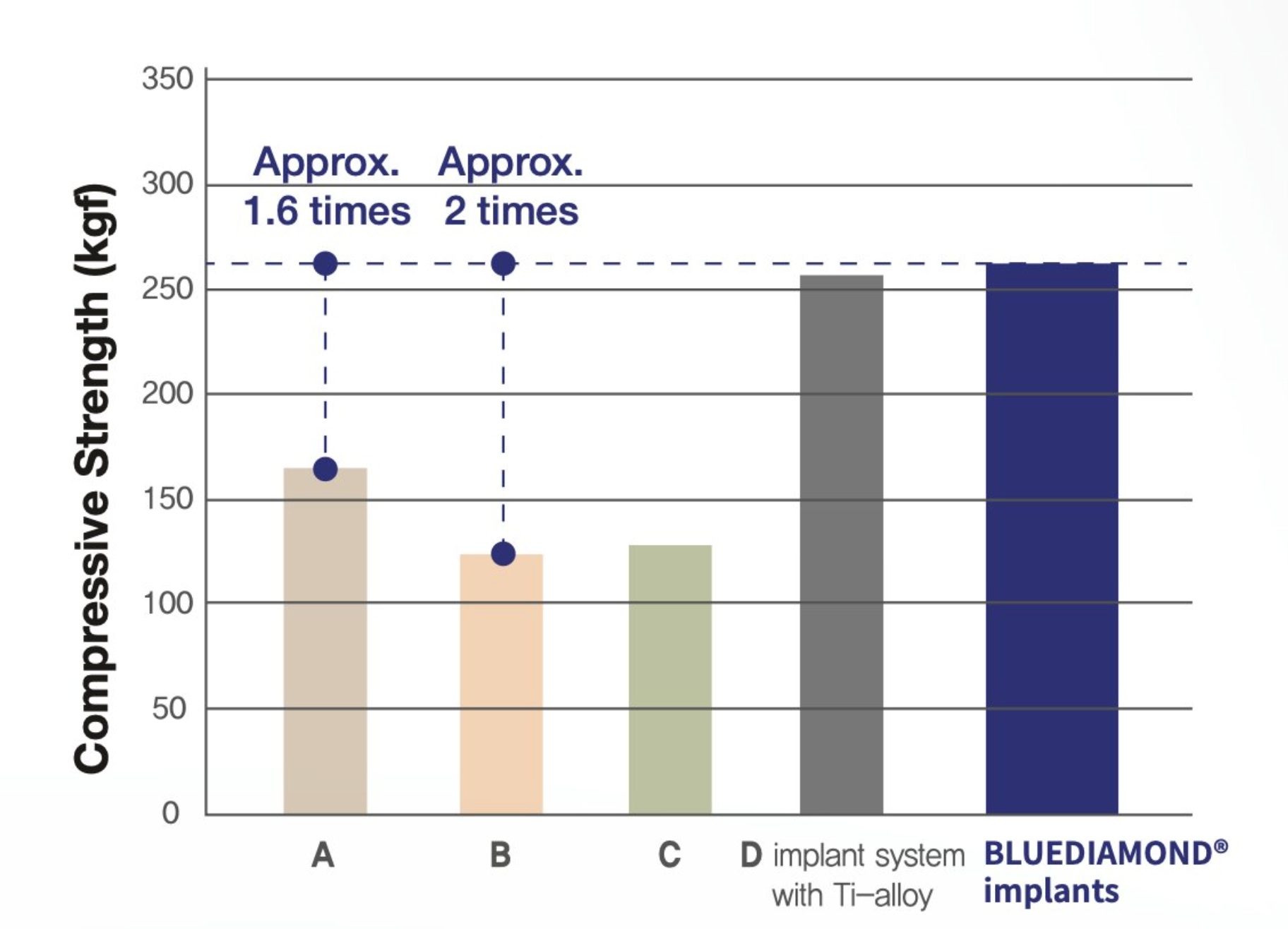

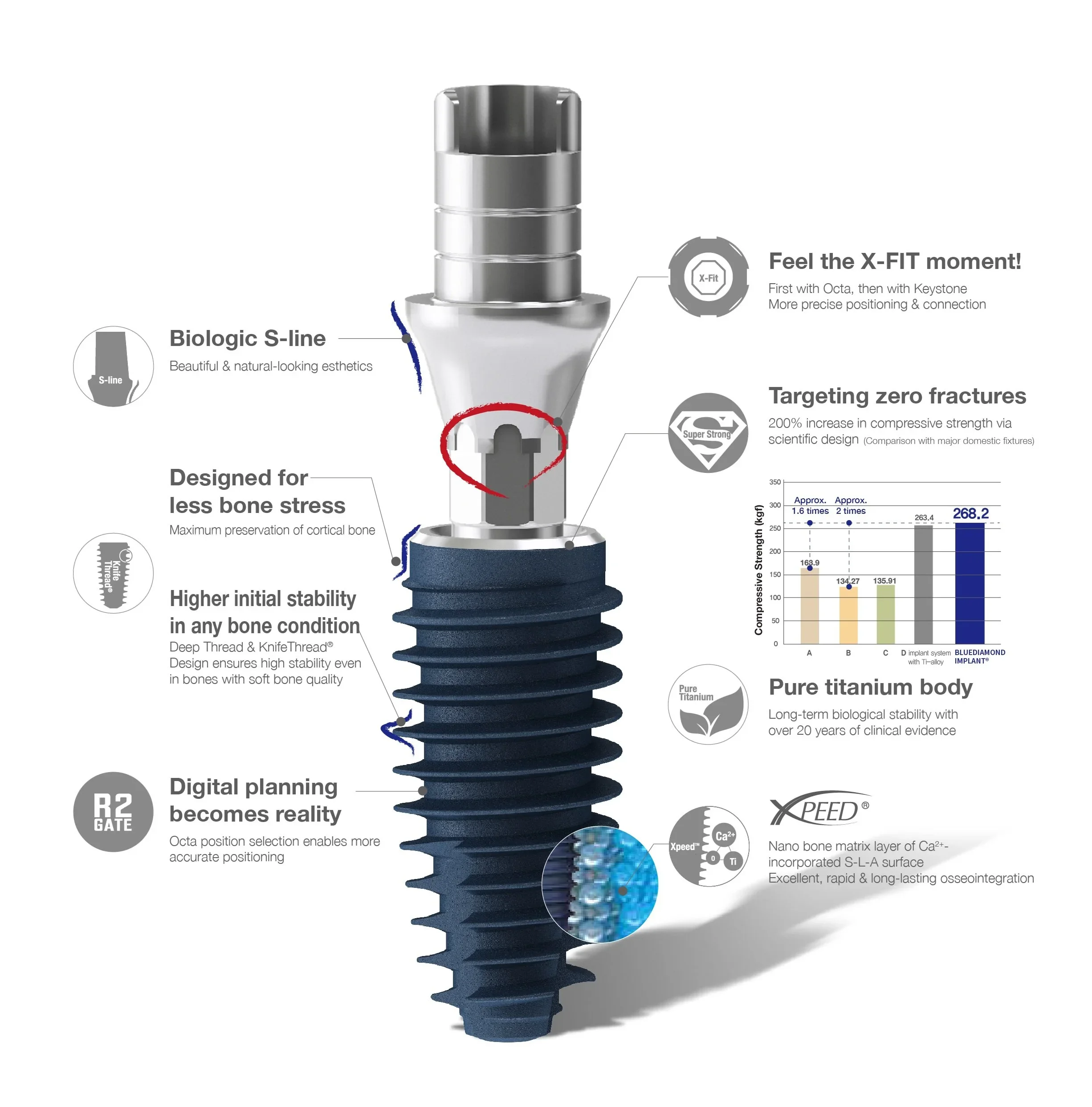

Unsurpassed Strength
- 2x stronger than other implants
BLUEDIAMOND IMPLANT® implants are designed for durability and long-term stability, being 200% stronger than any other implant.
The strength comes from its unique design and materials, including XPEED® coating, which accelerates osseointegration, and KnifeThread® design, which provides better initial stability in a variety of bone conditions. All of these features contribute to greater compressive and fatigue strength, as well as long-term biological stability.
Place the desired implant size with minimal surgical intervention, even in cases of limited alveolar bone width and no bone marrow transplant.
To avoid bone augmentation, a ø4.1mm implant can be used in the molar area
The situation has changed. 3.5 or 3.75 is not enough for a single implant, although we once thought so. We need a solid solution.
Thanks to the patented X-fit keystone connection, the ø4.1 is twice as strong as the ø4.0
Suitable for elderly patients, as the BDCuff allows to avoid vertical augmentation
Use the ø3.7 without GBR for the premolar instead of the ø4.0 or ø3.5
The ø3.7 is 21% stronger than the 3.3ø BLT. Which implant do you prefer for the 2nd premolar?
Use the ø3.3 for the mandibular anterior and lateral incisors
Innovative Surface Technology
Our implants use advanced surface technology that allows for faster and more effective healing compared to traditional S-L-A implants. Enjoy a shorter healing period and faster recovery!

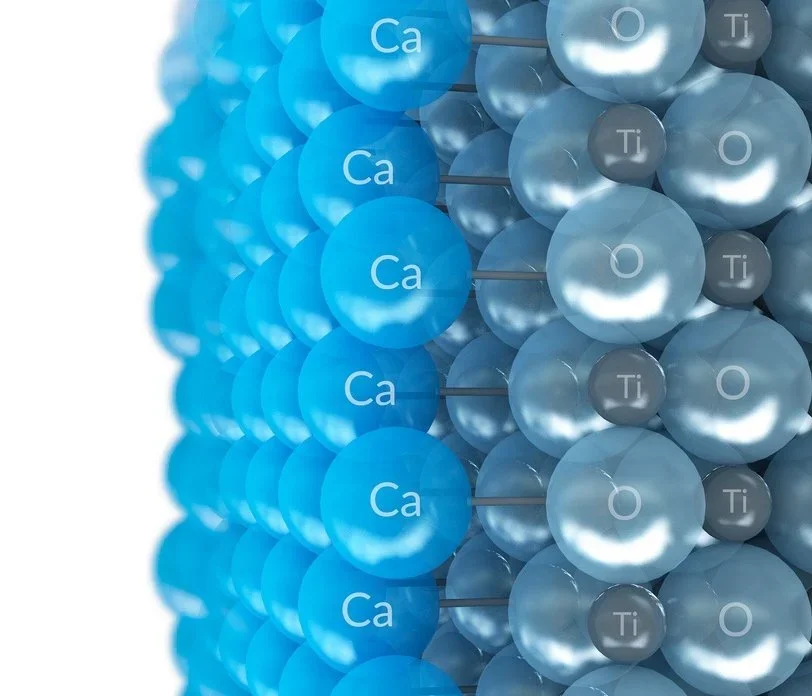

The unique technology deposits Ca2+ ions on the implant surface, following the S-L-A surface treatment of pure medical grade 4 titanium. These Ca2+ ions create CaTiO3 nanostructures on the implant surface, which activate osteoblasts in living bone cells.
BLUEDIAMOND has the same surface treatment as AnyRidge, which has received the Clean Implant Trusted Quality award for six consecutive years.
XPEED pārklājums
Ca(2+) S.L.A. pārklājuma struktūra.
Spēcīgāka, ātrāka un drošāka pārkaulošanās.
A connection that won't let you down
No more abutment misplacement! Save time with a prosthetic design that minimizes screw loosening. The arched keystone and octa-joint prosthetic connection provides superior mechanical stability and pressure resistance, allowing the implant to be placed 2mm below the bone without tissue shrinkage over time.

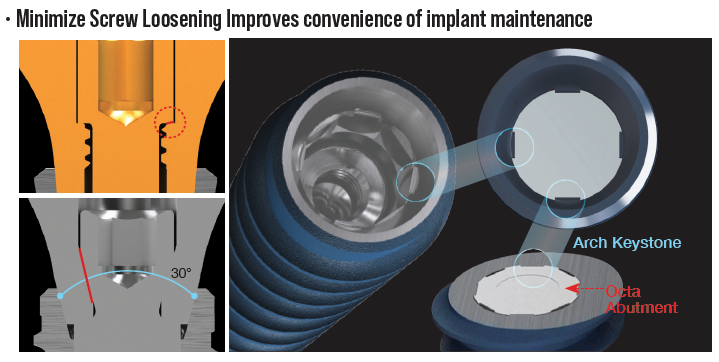

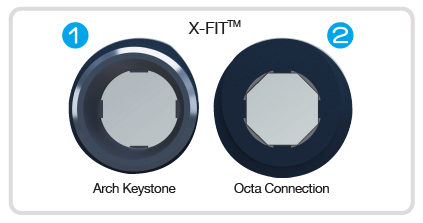

X-FIT™
Double internal structure consisting of a 30° conical arch connection (Arch Keystone) and an Okta connection - ensures a more precise and secure connection.
Minimizing screw loosening
Increased contact area between abutment screw and abutment.
30° connection minimizes subsidence
Due to the arch structure inside the implant-abutment connection, the tightness between the abutment and the implant is maximized

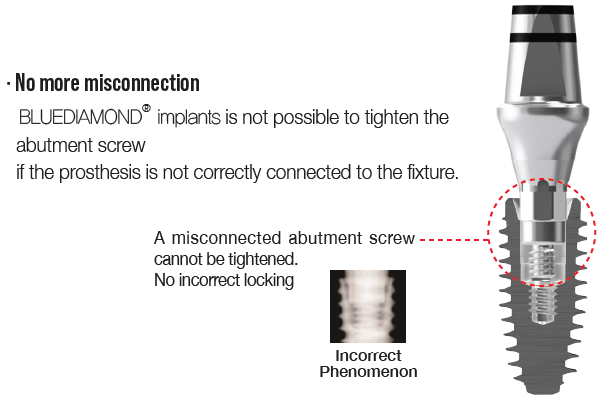

No more abutment misplacement
The double internal structure consisting of a 30° conical arc connection and an Okta connection ensures a more precise and secure connection.
Aesthetics and Functionality
MegaGen Blue Diamond supports long-term bone and aesthetic stability while providing superior functionality. Perfect for anteriors and incisors, ensuring a natural appearance.
Use ø3.7 mm implants without augmentation for premolars with narrow alveolar ridges (larger diameter implants are recommended for wider jaw margins).
In elderly patients with narrow alveolar ridges, use ø4.1 mm implants for molars (larger diameter implants are recommended for wider alveolar ridges).

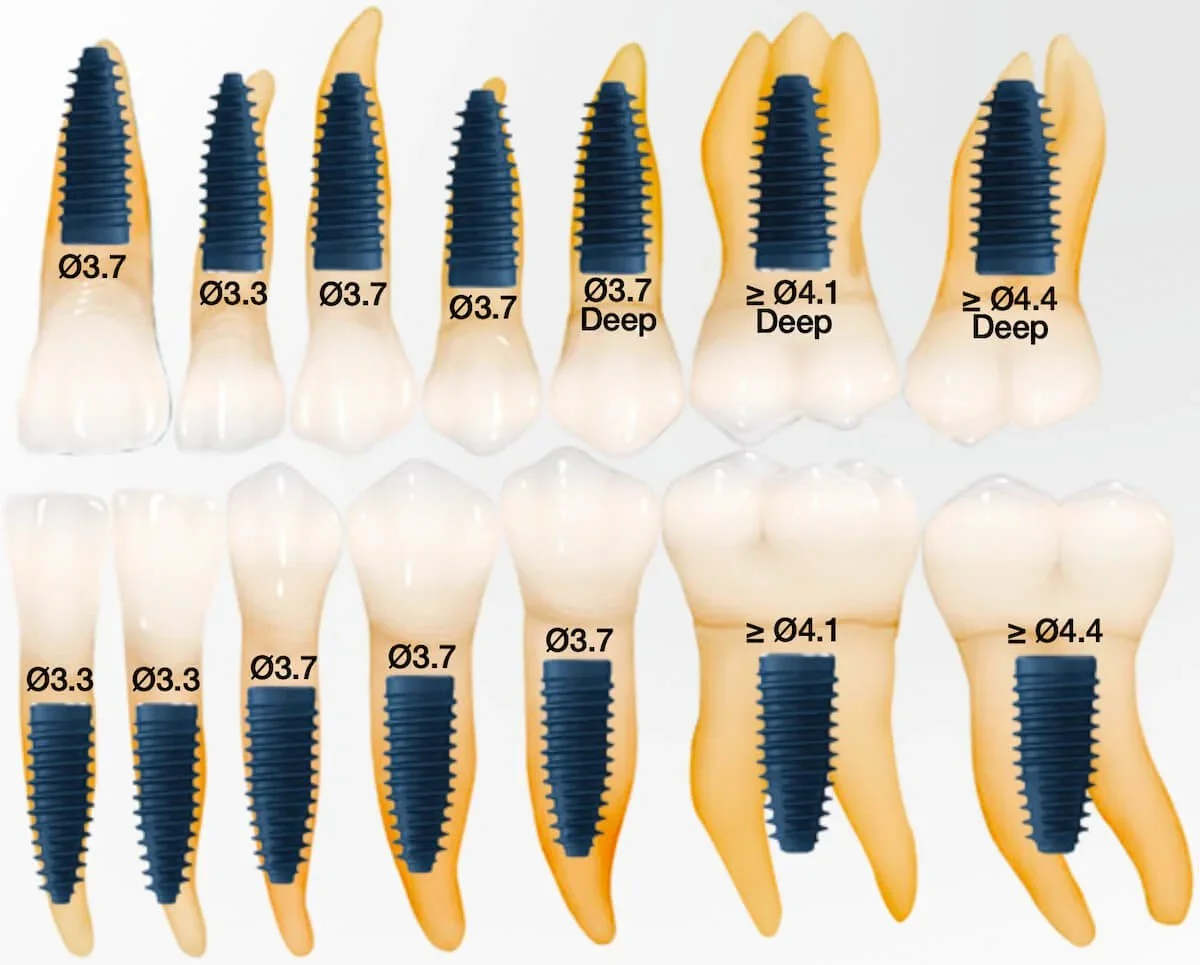

Implant Sizing Guide
A higher success rate is ensured when the implant diameter and thread are matched to the tooth size, bone thickness and density.

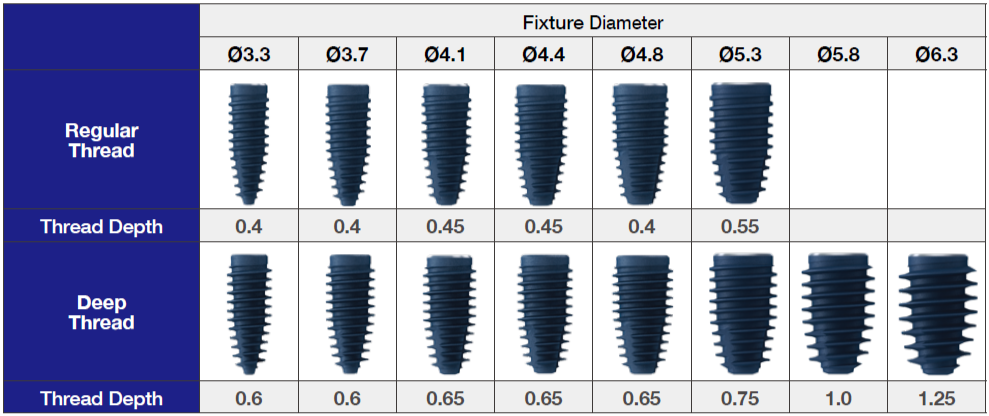

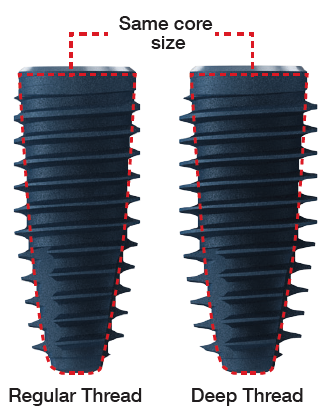

Excellent primary stability in any bone situation! In soft bone, use Deep Thread implants.
Same core, but different thread depth.
E.g.: Normal vs. deep thread ø4.1 mm implant. The deep thread edge is 0.2 mm longer for the same core. This provides a 0.4 mm larger total diameter and thus better primary stability.
